Chamber Septic System Installation
Professional chamber septic system installation for residential and commercial properties across your service area.
5 Highlights on Chamber Septic System Installation
- Gravel-less design saves time and money. Chamber septic system installation uses lightweight plastic chambers like Infiltrator and Arc units instead of traditional gravel bed drain fields. Property owners save on aggregate costs and trucking fees while getting a high-capacity absorption bed that handles wastewater efficiently.
- Engineered for challenging soil conditions. Our licensed installers size and configure chambered systems for sandy, loamy, and clayey soils. Each installation accounts for percolation rate, water table depth, and setback requirements specific to your parcel.
- Faster excavation and backfill. Plastic chambers are easy to trench, place, and connect. A typical residential chamber septic system installation takes two to three days from excavation to final grading and compaction.
- Long-term absorption performance. Chambers create open-air space beneath the drain field, allowing effluent to percolate into surrounding soil without the biomat buildup that clogs conventional gravel systems. This extends the life of your leach field.
- Full permit and inspection coordination. Action Septic Service handles septic permit applications, soil evaluations, site plans, and health department inspections so you don’t chase paperwork while we install your system.
Why Choose Our Chamber Septic System Installation
Chamber septic system installation is one of the most requested services we perform at Action Septic Service. We’ve built our reputation on precise excavation, code-compliant connections, and systems that function for decades.
Our septic contractors hold current licenses and certifications. Every crew member understands distribution box placement, lateral line spacing, inlet and outlet pipe grades, and the manufacturer specifications for each chamber product we install. We don’t subcontract the work.
Action Septic Service provides a written workmanship guarantee on every chambered system we build. That covers trench preparation, pipe connections, endcap sealing, backfill compaction, and final grading. If something we installed fails within the guarantee period, we return and repair it at no charge.
We also stand apart on project management. Before we break ground, our team completes a soil evaluation, reviews your perc test results, and submits a detailed site plan to the local health department. We schedule the building inspector at the right construction stages so your project stays on track.
Homeowners and commercial property owners choose us because we communicate clearly, show up on schedule, and install chamber systems that comply with state and local onsite wastewater regulations. Our pricing is transparent. No hidden fees for excavator mobilization, geotextile fabric, or PVC fittings.
Signs You Need Chamber Septic System Installation
Chamber septic system installation becomes necessary under several specific conditions. Recognizing these signs early protects your property and groundwater.
Your existing drain field is failing: Saturated soil above the leach field, standing effluent, and sewage odors in the yard all indicate a clogged or collapsed absorption bed. When a conventional gravel system fails, replacing it with a chambered drain field often provides better long-term percolation and eliminates the recurring biomat problem that caused the original failure.
You’re building on a new lot with no septic infrastructure: Any new residential or commercial construction on a property without municipal sewer access requires a permitted onsite wastewater system. A chamber septic system installation gives you a modern, engineered solution that meets current health department standards and fits a range of soil types.
Your perc test results favor a gravel-less design: Some soil profiles, particularly sandy or loamy ground with moderate percolation rates, perform best with open-bottom chambers rather than aggregate-filled trenches. If your soil scientist or engineer recommends a chambered system based on your perc test, that’s a clear signal to move forward.
Your property has limited access for heavy trucks: Gravel bed installations require multiple loads of drainrock delivered by dump truck. Chamber systems eliminate that requirement. If your driveway is narrow, steep, or unpaved, a plastic chamber installation reduces site disturbance and truck traffic significantly.
Your septic tank capacity no longer matches household demand: Home additions, extra bathrooms, and increased occupancy can overload an undersized system. Installing a new chamber drain field alongside an upgraded septic tank or dosing tank brings your entire system into compliance and prevents overflow and seepage.
Our Chamber Septic System Installation Process
Chamber septic system installation follows a structured sequence from initial site work through final commissioning.
Step 1: Site evaluation and permitting. We survey the property, review existing soil evaluation data, and confirm percolation test results. Our team prepares the site plan showing tank placement, distribution box location, trench layout, and all required setbacks from wells, property lines, and structures. We submit the septic permit application and coordinate with the health department.
Step 2: Excavation. Our excavator operator digs the septic tank hole, distribution box pit, and drain field trenches to the engineered depths and grades. We verify trench dimensions match the chamber manufacturer’s specifications before proceeding.
Step 3: Tank and distribution box setting. We lower the precast septic tank into position, level it, and connect the inlet pipe from the building sewer and the outlet pipe to the distribution box. Baffles, risers, lids, and effluent filters go in at this stage.

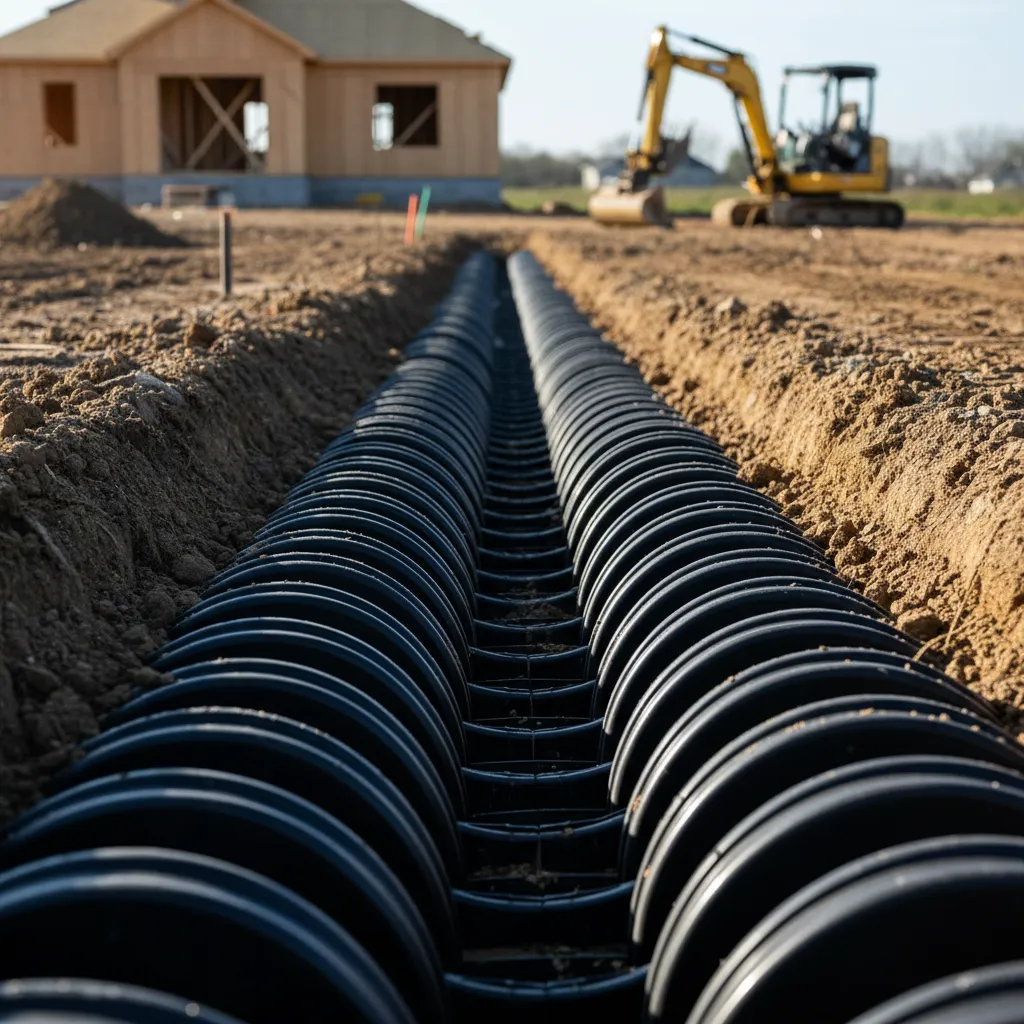

Step 4: Chamber placement and connection. Crews lay geotextile fabric in each trench, then snap chambers together end to end with endcaps on the terminal units. Header pipes and lateral lines connect the distribution box to each chamber row. We inspect every fitting and joint.
Step 5: Inspection, backfill, and grading. The building inspector verifies the open installation. After approval, we backfill trenches with approved fill material, compact the soil in lifts, and grade the surface to direct stormwater away from the drain field. We commission the system and walk you through maintenance requirements.
Brands We Use
Chamber septic system installation quality depends on the products going into the ground. Action Septic Service installs components from these trusted manufacturers:
- Infiltrator Water Technologies
- ADS (Advanced Drainage Systems)
- Orenco Systems
- Polylok
- TUF-TITE
- Sim/Tech Filter
- Zoeller
- Liberty Pumps
- Hancor / ADS
- Netafim
Using certified, name-brand components protects your investment and keeps your system compliant.
Other Services
| Chamber septic system installation | Chambered drain field installation | Gravel-less septic system, plastic chamber leach field |
| Septic chamber install | Infiltrator chamber installation | Onsite wastewater system, subsurface absorption bed |
| Chamber drain field | Gravel-free septic drain field | Percolation trench, effluent disposal field |
| Residential chamber septic | Home septic chamber system | Septic permit, soil evaluation, perc test |
| Commercial chamber septic installation | Large capacity chamber system | Distribution box, dosing tank, engineered septic design |
FAQs About Chamber Septic System Installation
What is a chamber septic system?
A chamber septic system uses arched plastic chambers buried in trenches instead of gravel-filled beds to distribute and absorb effluent into the surrounding soil. Wastewater flows from the septic tank through a distribution box into rows of connected chambers. The open-bottom design allows effluent to percolate directly into native soil without aggregate.
How long does chamber septic system installation take?
Most residential installations take two to four days once the septic permit is approved. Larger commercial systems or sites with difficult soil conditions may require additional time for excavation, grading, and inspection stages.
Why choose chambers over a conventional gravel drain field?
Chambers eliminate the cost of purchasing and hauling drainrock. They’re lighter, faster to install, and create more air space for effluent treatment. Chamber systems also resist biomat clogging better than gravel beds, which extends drain field life.
How much does a chamber septic system installation cost?
Pricing depends on tank size, number of chambers, trench length, soil conditions, and local permit fees. Action Septic Service provides detailed written estimates after completing a site evaluation and reviewing your perc test data.
Can a chamber system replace a failing drain field?
Yes. We regularly retrofit failed gravel drain fields with new chamber systems. The replacement drain field must meet current setback and sizing requirements, and a new septic permit is typically required.
Does a chamber septic system need maintenance?
Pump the septic tank every three to five years. Inspect the effluent filter, distribution box, and observation tubes annually. Keep vehicles, heavy equipment, and deep-rooted plants off the drain field. Action Septic Service offers scheduled maintenance plans to keep your chambered system functioning properly.
